Controllers

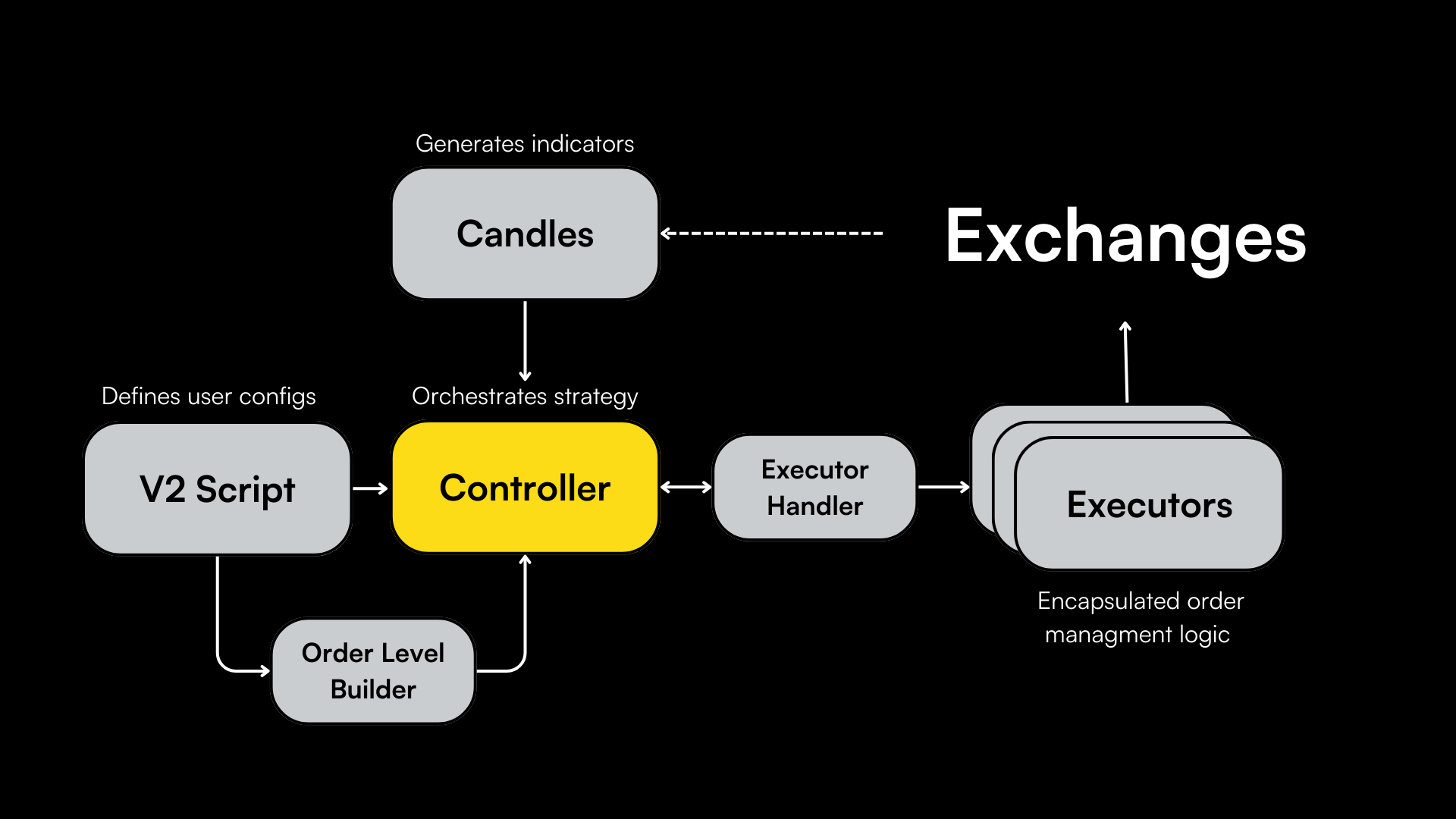

The Controller is a pivotal component in Hummingbot's V2 strategy framework, orchestrating the overall strategy behavior. It is responsible for fetching and processing data from Candles, computing signals, and instructing Executors to respond to these signals appropriately.

Base Classes

ControllerBase

All Controller base classes inherit from the ControllerBase class. The ControllerConfigBase defines the basic parameters that each controller should expose.

class ControllerConfigBase(BaseModel):
    exchange: str
    trading_pair: str
    strategy_name: str
    candles_config: List[CandlesConfig]
    order_levels: List[OrderLevel]
    close_price_trading_pair: Optional[str]
  • exchange: exchange you are trading on
  • trading_pair: execution trading pair in 'BASE-QUOTE' format, e.g., BTC-USDT
  • strategy_name: identifier for the strategy
  • candles_config: list of candlesticks used for generating signals
  • order_levels defines the structure and conditions of orders
  • close_price_trading_pair: price calculation trading pair in 'BASE-QUOTE' format, e.g., BTC-USDT

Strategy Base Classes

Strategy base classes define additional parameters and methods specific to those strategies. They also define additional parameters such as:

  • leverage: leverage ratio utilized (only used for perpetual connectors)
  • position_mode: Hedge or One-way mode
  • is_perpetual(): returns True if trading on a perpetual futures connector

See Sample Strategies for the current strategy base classes.

Passing Configs to Controller

The example below from the DManV3 sample script shows how a script passes the user-defined configs to the controller:

for trading_pair in trading_pairs:
    config = DManV3Config(
            exchange=exchange,
            trading_pair=trading_pair,
            order_levels=ORDER_LEVELS,
            candles_config=CANDLES,
            ...
            # other controller-specific configs
               )
    controller = DManV3(config=config)
    markets = controller.update_strategy_markets_dict(markets)
    controllers[trading_pair] = controller
    # The controllers are passed into the executor handlers
  • The script iterates over a list of trading pairs (e.g., ["ETH-USDT", "BTC-USDT"]). This allows the strategy to be applied to multiple trading pairs, rather than just a single pair.
  • For each trading pair, a DManV3Configobject is created. This object holds the configuration specific to that pair, including the exchange, order levels, candle configurations, and various strategy-specific parameters like Bollinger Bands settings, side filter, dynamic spread factors, and activation thresholds.
  • A new instance of DManV3 (market making controller class) is created for each trading pair, using the specific configuration set up in the previous steps
  • The markets dictionary is updated with data relevant to the strategy for the current trading pair.
  • The controller for each trading pair is stored in the controllers dictionary. This allows for easy access and management of different strategies for each trading pair.

A Controller in Detail

Below, we walk through the DMan-V3 controller in greater detail.

The DManV3 controller implements a mean reversion-style market making strategy that utilizes Bollinger Bands to dynamically set spreads and prices, enabling you to trade on multiple pairs with the same configuration.

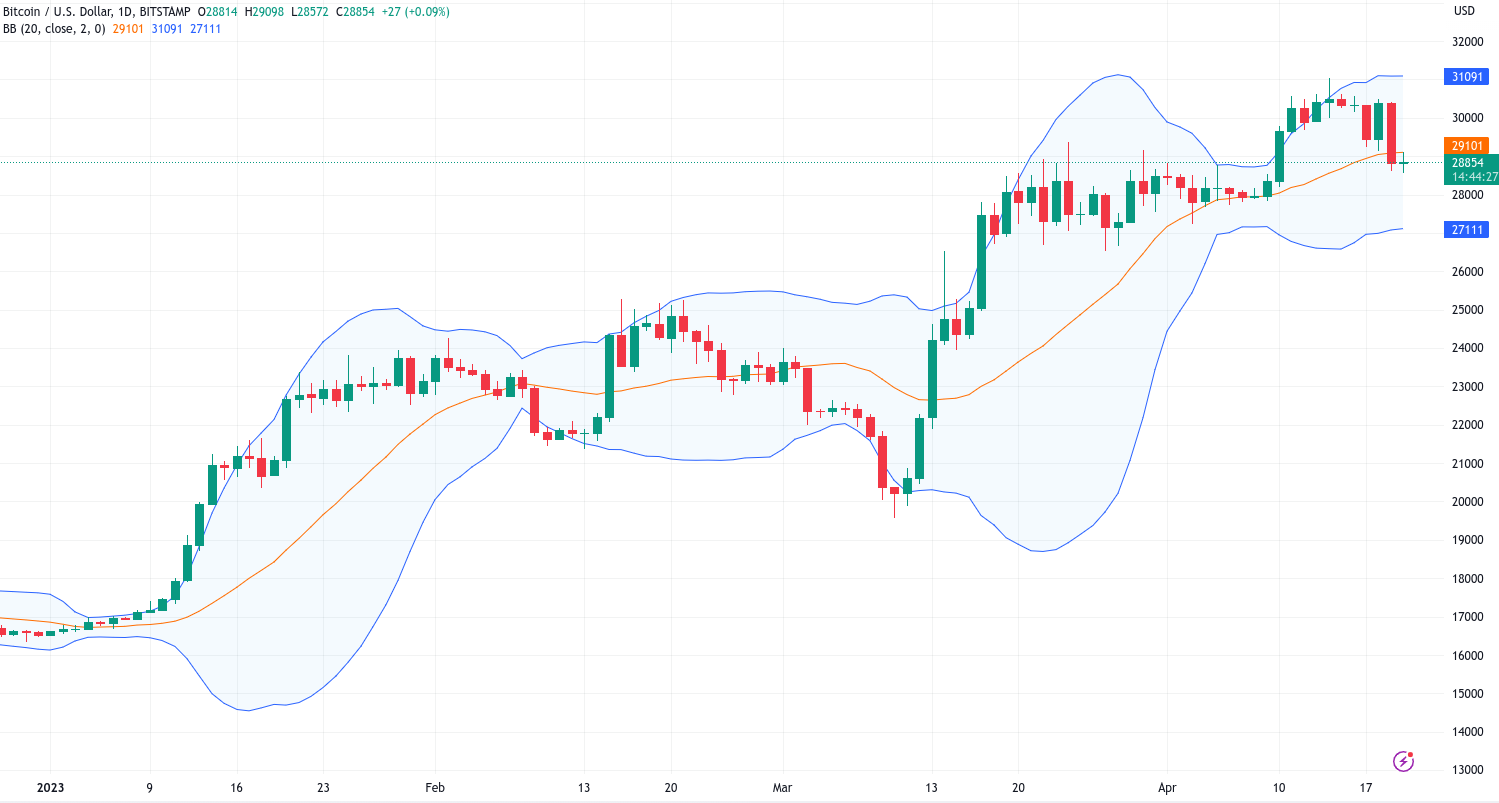

Bollinger Bands consist of three lines: a simple moving average (SMA) line, an upper band, and a lower band. The upper and lower bands are calculated by adding and subtracting a multiple of the standard deviation of the asset's price from the SMA line.

Configuration

The key variables are the assumptions used to set the bands:

  • strategy_name: Identifier for the strategy.
  • bb_length: Number of periods used for Bollinger Bands calculation.
  • bb_std: Number of standard deviations away from the moving average.

Here, bb_length is the number of Candle intervals used to calculate the SMA, or the Bollinger Band midline, while bb_std is the number of standard deviations defined by the upper and lower bands.

class DManV3Config(MarketMakingControllerConfigBase):
    strategy_name: str = "dman_v3"
    bb_length: int = 100
    bb_std: float = 2.0
    ...

get_processed_data Method

The get_processed_data method is central to a Controller's functionality, since it defines how the data collected from Candles is used.

Below, the DmanV3 implementation fetches the latest candlestick data and calculates price and spread multipliers using Bollinger Bands which dynamically adjust the mid price and order spreads utilized by Executors.

def get_processed_data(self):
    candles_df = self.candles[0].candles_df
    bbp = ta.bbands(candles_df["close"], length=self.config.bb_length, std=self.config.bb_std)

    candles_df["price_multiplier"] = bbp[f"BBM_{self.config.bb_length}_{self.config.bb_std}"]
    candles_df["spread_multiplier"] = bbp[f"BBB_{self.config.bb_length}_{self.config.bb_std}"] / 200
    return candles_df

For each pair defined in the V2 Script, spread_multiplier is used to determine spreads for a particular Order Level. Thus, each set of orders are based on the Bollinger Band data generated from the Candles for that particular pair.

side_filter Feature

The side_filter is a configuration setting in the DmanV3 controller that, when enabled (true), restricts order placement to only one side of the order book. This feature is particularly useful in strategies where the trader has a directional bias or wishes to avoid taking positions that contradict a predicted market movement.

Here's how the side_filter works within the get_position_config method:

# Avoid placing the order from the opposite side
side_filter_condition = self.config.side_filter and (
    (bollinger_mid_price > close_price and side_multiplier == 1) or
    (bollinger_mid_price < close_price and side_multiplier == -1))
if side_filter_condition:
    return

When side_filter is active, and the condition is met—either the mid-price from Bollinger Bands is greater than the close price for buys, or less for sells—the method returns without creating a PositionConfig. This behavior ensures that orders are only placed in alignment with the prevailing market trend or strategy's directional bias.

smart_activation Feature

The smart_activation setting allows the DmanV3 controller to place orders conditionally rather than immediately, based on specific market conditions. This feature enables a strategy to be more responsive to market movements, avoiding premature or undesired entry.

In the get_position_config method, smart_activation works as follows:

# Smart activation of orders
smart_activation_condition = self.config.smart_activation and (
    side_multiplier == 1 and (close_price < order_price * (1 + self.config.activation_threshold)) or
    (side_multiplier == -1 and (close_price > order_price * (1 - self.config.activation_threshold))))
if smart_activation_condition:
    return

With smart_activation enabled, the method checks if the market price is within a threshold relative to the desired order price—adjusted for the activation threshold. If the price is outside this range, indicating that the market conditions are not favorable for order placement, the method exits without creating a PositionConfig. This ensures that orders are only activated when the market price meets the strategy's specific conditions, thus implementing a form of conditional execution.

Conditional Methods

These methods allow users to control the set of deployed Executors based on Candles data:

def refresh_order_condition(self, executor: PositionExecutor, order_level: OrderLevel) -> bool:
        """
        Checks if the order needs to be refreshed.
        You can reimplement this method to add more conditions.
        """
        if executor.position_config.timestamp + order_level.order_refresh_time > time.time():
            return False
        return True

def early_stop_condition(self, executor: PositionExecutor, order_level: OrderLevel) -> bool:
    """
    If an executor has an active position, should we close it based on a condition.
    """
    return False

def cooldown_condition(self, executor: PositionExecutor, order_level: OrderLevel) -> bool:
    """
    After finishing an order, the executor will be in cooldown for a certain amount of time.
    This prevents the executor from creating a new order immediately after finishing one and execute a lot
    of orders in a short period of time from the same side.
    """
    if executor.close_timestamp and executor.close_timestamp + order_level.cooldown_time > time.time():
        return True
    return False
