Executors

executors

Executors in Hummingbot are self-managing components that handle the execution of orders according to predefined conditions set by Controllers, which, in turn, utilize data from the MarketDataProvider (Candles, Orderbook, Trades). Executors are tasked with managing the state of orders — initiating, refreshing, and canceling orders, as well as halting their own operation when certain conditions are met.

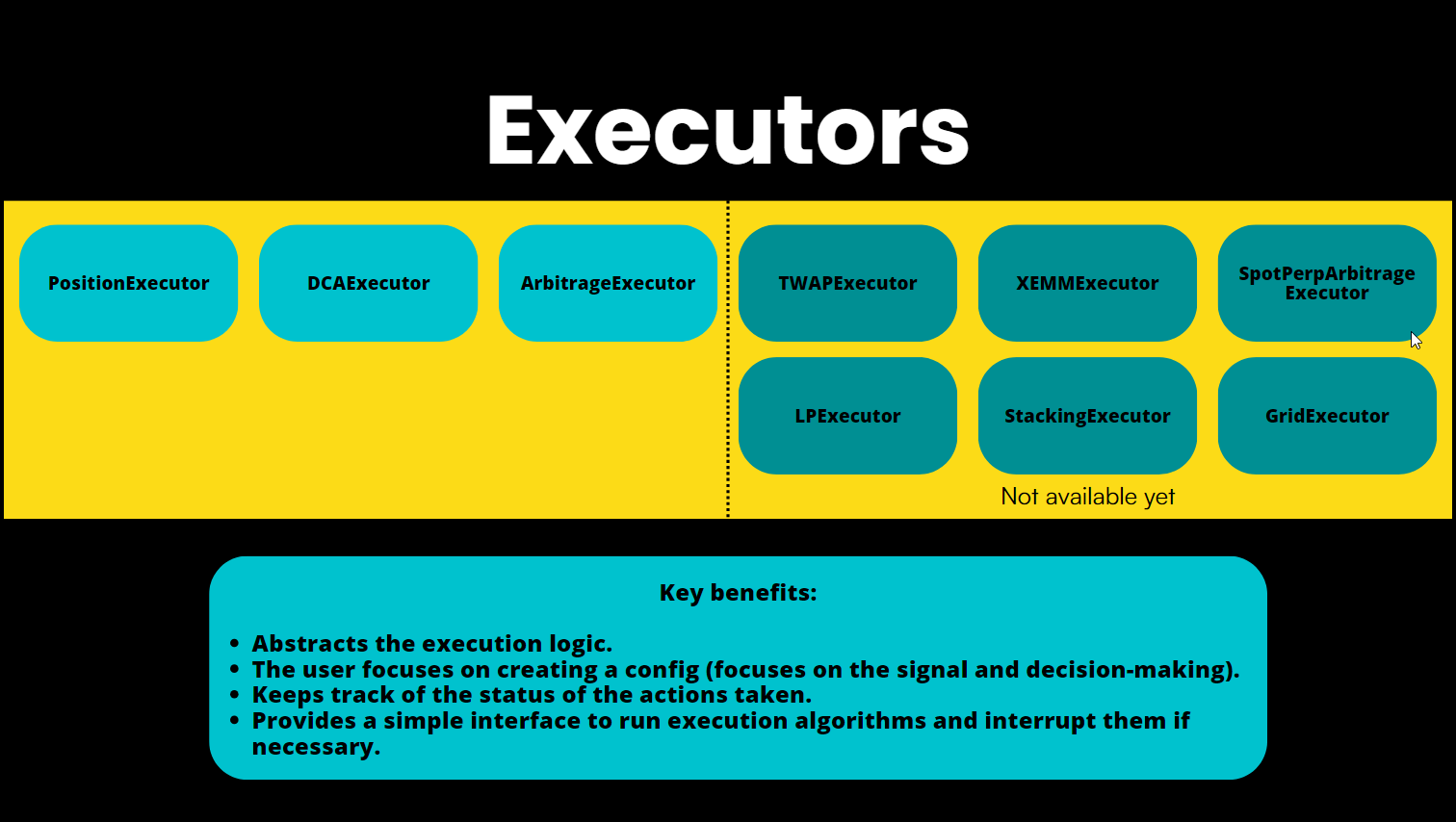

Types of Executors

LP Executor

The LP Executor (lp_executor) is a new executor type introduced in v2.13.0 that automates liquidity provision on Concentrated Liquidity Market Maker (CLMM) DEXs such as Meteora and Raydium on Solana.

How It Works

The LP Executor manages the full lifecycle of an LP position:

  1. Open: Deploys liquidity into a CLMM pool at the configured price range
  2. Monitor: Tracks position health and whether the current price is within range
  3. Rebalance: When price moves out of range, closes and reopens the position at the new price center (controlled by lp_rebalancer controller)
  4. Close: Removes liquidity and returns tokens to the wallet

Key Configuration Parameters

Parameter Description
connector_name DEX connector (e.g., meteora, raydium)
trading_pair Token pair (e.g., Percolator-SOL)
pool_id On-chain pool address
total_amount_quote Total position size in quote token
side 0 = both sides, 1 = buy only, 2 = sell only
width_percent Price range width as % of current price
price_offset Center offset from current price (%)
rebalance_threshold % price move that triggers rebalance
rebalance_seconds Minimum seconds between rebalances

Tracking LP Performance

The lphistory command in the Hummingbot client shows a summary of all closed LP positions, including fees earned, P&L, and rebalance events:

>>> lphistory

This is useful for evaluating the performance of lp_rebalancer strategies over time.

Usage via Hummingbot API

Use the lp-agent skill or call the API directly:

# Via lp-agent skill
python scripts/run_strategy.py --pair Percolator-SOL --amount 0.30 --side 2

Or via API:

POST /executors/create
{
  "type": "lp_executor",
  "connector_name": "meteora",
  "trading_pair": "Percolator-SOL",
  "total_amount_quote": 0.30,
  "side": 2,
  "width_percent": 0.4
}

Benefits of Executors

  • Autonomy: Executors independently manage order states, offloading complex logic from the user.
  • Simplicity: They simplify strategy code, enabling users to create powerful strategies with ease.
  • Flexibility: By dynamically adjusting to market data, Executors can set spreads and shift prices, offering greater strategy adaptability.

Executor Orchestrator

The ExecutorOrchestrator serves as a utility class that enables trading strategies to dynamically create, stop, and manage executors, which are specialized units responsible for executing trading activities such as placing and managing orders.

Key Features and Operations

  • Initialization: The ExecutorOrchestrator is initialized with a reference to the trading strategy (strategy) and an update interval (executors_update_interval). This setup allows it to periodically update and manage executors based on the strategy's requirements.

  • Executor Management: It maintains a dictionary of executors, where each executor is associated with a controller ID. This structure facilitates the organization and retrieval of executors for management purposes.

  • Action Execution: The orchestrator can execute various actions (ExecutorAction) such as creating, stopping, and storing executors. Actions are processed either individually or in batches, allowing for flexible execution management.

    • Creating Executors: Based on the CreateExecutorAction, it can instantiate different types of executors (e.g., PositionExecutor, DCAExecutor, ArbitrageExecutor) with specific configurations. This allows strategies to deploy diverse trading tactics dynamically.

    • Stopping Executors: Using the StopExecutorAction, it can gracefully stop executors, ensuring that any ongoing operations are properly concluded before termination.

    • Storing Executors: The StoreExecutorAction enables the orchestrator to store executor data, facilitating persistence and analysis of executor performance over time.

  • Performance Reporting: The orchestrator can generate detailed performance reports for individual controllers or globally across all controllers. These reports include metrics such as realized and unrealized P&L (Profit and Loss), trading volume, and the distribution of close types, providing insights into the effectiveness of the trading strategy and its executors.
