Examples
Running V2 Strategies¶
The main logic in a V2 strategy is contained in the Controller, which inherits from a base class in hummingbot/strategy_v2/controllers/. Controllers orchestrate Candles and Executors.
Configurable scripts (files in /scripts that define a config class): create a YAML file with create --v2-config [SCRIPT_NAME], then start with:
The file must live in conf/scripts/ and include script_file_name (the quickstart and CLI resolve the script from that field).
Controllers are not started alone. Create controller YAML with create --controller-config [CONTROLLER_NAME], then use the v2_with_controllers loader (create --v2-config v2_with_controllers) so the YAML lists one or more controller configs. See the Controller Walkthrough for screenshots and the full flow.
Controller names use the path under /controllers with . instead of slashes (for example directional_trading.bollinger_v1, market_making.pmm_simple).
Directional Strategies¶
Directional strategies inherit from the DirectionalTradingControllerBase class.
In the controller's signal logic, a directional strategy uses indicators (often from Candles) so that:
1: Long Position Executor is created-1: Short Position Executor is created
For each controller below: run create --controller-config …, add the generated YAML to a v2_with_controllers script config, then start --v2 that loader config.
Bollinger V1¶
A simple directional strategy using Bollinger Band Percent (BBP).
Code: bollinger_v1.py
Controller config
User-defined parameters (when you run create):
| Parameter | Type | Prompt |
|---|---|---|
| exchange | trading | Enter the name of the exchange where the bot will operate (e.g., binance_perpetual) |
| trading_pairs | trading | List the trading pairs for the bot to trade on, separated by commas (e.g., BTC-USDT,ETH-USDT) |
| leverage | trading | Set the leverage to use for trading (e.g., 20 for 20x leverage) |
| stop_loss | PositionExecutor | Set the stop loss percentage (e.g., 0.01 for 1% loss): |
| take_profit | PositionExecutor | Enter the take profit percentage (e.g., 0.03 for 3% gain): |
| time_limit | PositionExecutor | Set the time limit in seconds for the triple barrier (e.g., 21600 for 6 hours): |
| trailing_stop_activation_price_delta | PositionExecutor | Enter the activation price delta for the trailing stop (e.g., 0.008 for 0.8%): |
| trailing_stop_trailing_delta | PositionExecutor | Set the trailing delta for the trailing stop (e.g., 0.004 for 0.4%): |
| order_amount_usd | orders | Enter the order amount in USD (e.g., 15): |
| cooldown_time | orders | Specify the cooldown time in seconds between order placements (e.g., 15): |
| candles_exchange | candles | Enter the exchange name to fetch candle data from (e.g., binance_perpetual): |
| candles_interval | candles | Set the time interval for candles (e.g., 1m, 5m, 1h): |
| bb_length | strategy | Enter the Bollinger Bands length (e.g., 100): |
| bb_std | strategy | Set the standard deviation for the Bollinger Bands (e.g., 2.0): |
| bb_long_threshold | strategy | Specify the long threshold for Bollinger Bands (e.g., 0.3): |
| bb_short_threshold | strategy | Define the short threshold for Bollinger Bands (e.g., 0.7): |
Status
MACD-BB¶
Combines MACD and Bollinger Bands for long/short signals.
Code: macd_bb_v1.py
Controller config
User-defined parameters
| Parameter | Type | Prompt |
|---|---|---|
| exchange | trading | Enter the name of the exchange where the bot will operate (e.g., binance_perpetual) |
| trading_pairs | trading | List the trading pairs for the bot to trade on, separated by commas (e.g., BTC-USDT,ETH-USDT) |
| leverage | trading | Set the leverage to use for trading (e.g., 20 for 20x leverage) |
| stop_loss | PositionExecutor | Set the stop loss percentage (e.g., 0.01 for 1% loss) |
| take_profit | PositionExecutor | Enter the take profit percentage (e.g., 0.06 for 6% gain) |
| time_limit | PositionExecutor | Set the time limit in seconds for the triple barrier (e.g., 86400 for 24 hours) |
| trailing_stop_activation_price_delta | PositionExecutor | Enter the activation price delta for the trailing stop (e.g., 0.01 for 1%) |
| trailing_stop_trailing_delta | PositionExecutor | Set the trailing delta for the trailing stop (e.g., 0.004 for 0.4%) |
| order_amount_usd | orders | Enter the order amount in USD (e.g., 15) |
| cooldown_time | orders | Specify the cooldown time in seconds between order placements (e.g., 15) |
| candles_exchange | candles | Enter the exchange name to fetch candle data from (e.g., binance_perpetual) |
| candles_interval | candles | Set the time interval for candles (e.g., 3m) |
| macd_fast | strategy | Set the MACD fast length (e.g., 21) |
| macd_slow | strategy | Specify the MACD slow length (e.g., 42) |
| macd_signal | strategy | Define the MACD signal length (e.g., 9) |
| bb_length | strategy | Enter the Bollinger Bands length (e.g., 100) |
| bb_std | strategy | Set the standard deviation for the Bollinger Bands (e.g., 2.0) |
| bb_long_threshold | strategy | Specify the long threshold for Bollinger Bands (e.g., 0.3) |
| bb_short_threshold | strategy | Define the short threshold for Bollinger Bands (e.g., 0.7) |
Status
Market Making Strategies¶
Market-making controllers inherit from MarketMakingControllerBase. Use the same v2_with_controllers workflow as above. Additional controllers in the tree (for example market_making.dman_maker_v2, market_making.pmm_dynamic) appear in the create --controller-config autocomplete.
Dman V3¶
Mean reversion with grid-style execution and Bollinger-based dynamics.
Code: dman_v3.py
Controller config
User-defined parameters
| Parameter | Type | Prompt |
|---|---|---|
| exchange | trading | Enter the name of the exchange where the bot will operate (e.g., binance_perpetual) |
| trading_pairs | trading | List the trading pairs for the bot to trade on, separated by commas (e.g., BTC-USDT,ETH-USDT) |
| leverage | trading | Set the leverage to use for trading (e.g., 20 for 20x leverage) |
| candles_exchange | candles | Enter the exchange name to fetch candle data from (e.g., binance_perpetual) |
| candles_interval | candles | Set the time interval for candles (e.g., 30m) |
| bollinger_band_length | strategy | Enter the length of the Bollinger Bands (e.g., 200) |
| bollinger_band_std | strategy | Set the standard deviation for the Bollinger Bands (e.g., 3.0) |
| order_amount | orders | Enter the base order amount in quote asset (e.g., 20 USDT) |
| n_levels | orders | Specify the number of order levels (e.g., 5) |
| start_spread | orders | Set the spread of the first order as a ratio of the Bollinger Band value (e.g., 1.0) |
| step_between_orders | orders | Define the step between orders as a ratio of the Bollinger Band value (e.g., 0.2) |
| stop_loss | PositionExecutor | Set the stop loss percentage (e.g., 0.2 for 20% loss) |
| take_profit | PositionExecutor | Enter the take profit percentage (e.g., 0.06 for 6% gain) |
| time_limit | PositionExecutor | Set the time limit in seconds for the triple barrier (e.g., 259200 for 3 days) |
| trailing_stop_activation_price_delta | PositionExecutor | Enter the activation price delta for the trailing stop (e.g., 0.01 for 1%) |
| trailing_stop_trailing_delta | PositionExecutor | Set the trailing delta for the trailing stop (e.g., 0.003 for 0.3%) |

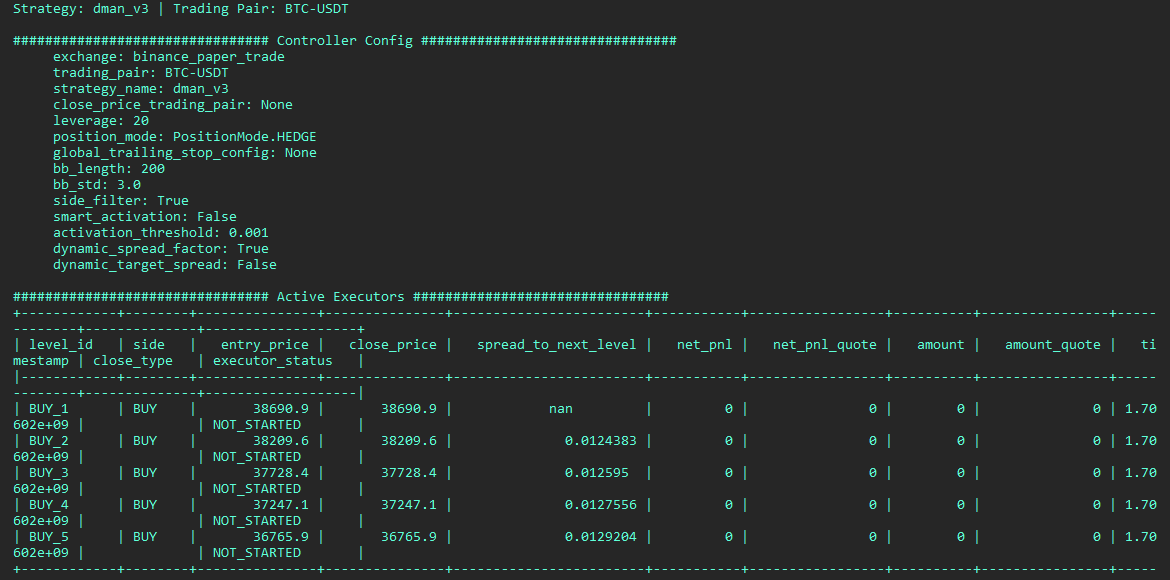

Status
