Architecture

Components

Understanding the three core components and how they relate is key to building effective strategies:

Executors

Executors automate a discrete trading workflow — placing, managing, and closing orders according to predefined logic. They are designed to start and finish: each executor has a lifecycle (active → closed/failed) and handles its own order management internally.

Key properties: - Self-contained: manages order placement, refresh, and cancellation autonomously - Finite: designed to complete a task, not run indefinitely - Can be created directly via the Hummingbot API without a running bot or script - Building blocks for controllers — a controller orchestrates one or more executors

Examples: PositionExecutor, DCAExecutor, GridExecutor, TWAPExecutor, XEMMExecutor, LPExecutor

Scripts and Controllers

Scripts and Controllers are long-running processes that start Docker containers and run continuously until stopped. They are suited for strategies that need to monitor markets, adapt over time, or manage multiple executors in parallel.

  • Scripts (inheriting from StrategyV2Base) are the entry point for simple, self-contained strategies. Started via start --script <file> in the Hummingbot client. Scripts are ideal for testing, learning, and prototyping — all logic lives in one file and is easy to read and modify. All V2 scripts now inherit from StrategyV2Base.
  • Controllers are production-grade, modular sub-strategies designed for advanced and long-running deployments. They are not started directly — a special launcher script (v2_with_controllers.py) loads one or more controllers into a single bot instance, enabling multiple independent strategies to run in parallel. Controllers are more configurable, testable, and reusable than scripts.

When to use each

Use case Component
One-time order workflow (entry, exit, hedge) Executor (via API)
Learning, testing, or simple one-off strategy Script
Production deployment with advanced logic Controller via v2_with_controllers script
Multiple strategies running simultaneously Multiple Controllers in one container
LP position with auto-rebalancing LP Executor + lp_rebalancer controller

Market Data Provider

Market Data Provider: Single point of access to exchange market data — historical OHLCV Candles, order book data, and trades. Used by both scripts and controllers to make trading decisions.

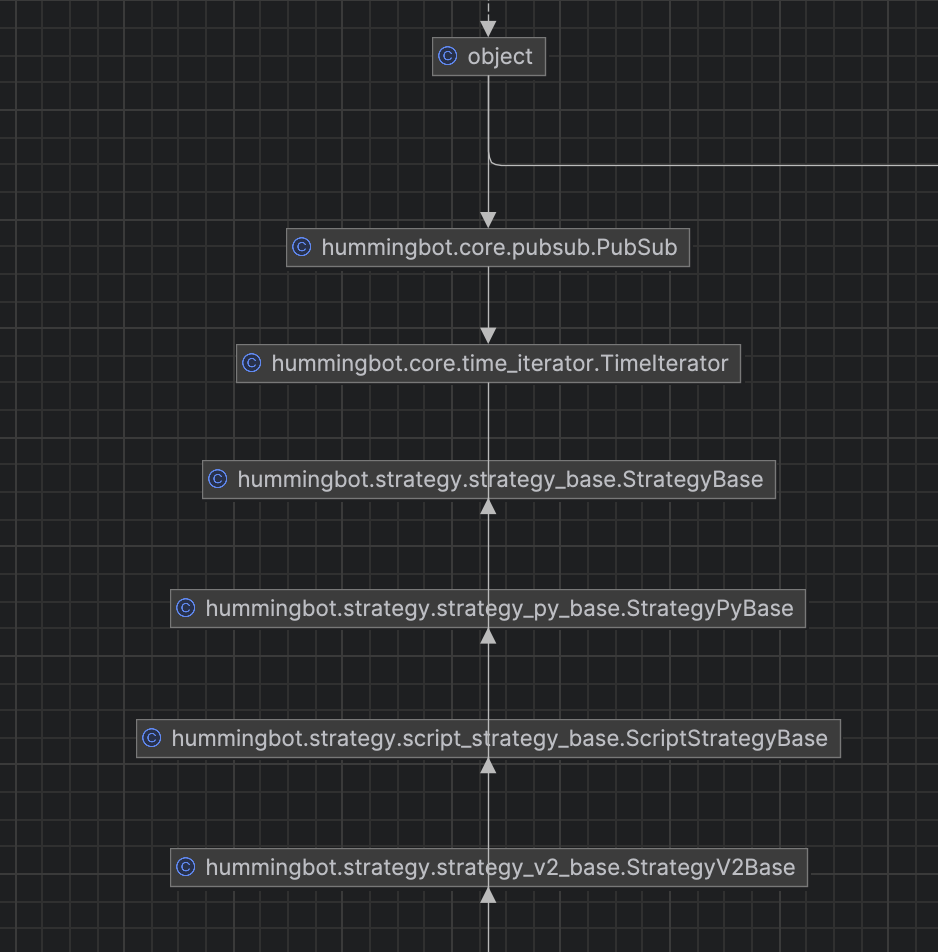

Inheritance

All V2 components are built on the same base class hierarchy:

  • V1 Strategies: StrategyBase is the Cython base class for all strategies, while StrategyPyBase extends it for Python-based strategies.
  • V2 Scripts: All scripts now inherit from StrategyV2Base (which itself extends ScriptStrategyBase). Use StrategyV2Base for all new script implementations — it uses Executors for order management instead of raw buy() / sell() calls.
  • Controllers: Extend StrategyV2Base further as loosely-coupled components that communicate via an event queue. Controllers are loaded and managed by a V2 script (v2_with_controllers.py).

Strategy Guides

Check out Walkthrough - Script and Walkthrough - Controller to learn how to create strategies.
