Dashboard Tutorial: PMM Simple V2

Welcome to the Dashboard Tutorial: PMM Simple V2 Strategy — a step-by-step guide designed to help you understand, configure, backtest, and deploy the PMM Simple V2 strategy using the Hummingbot Dashboard.

In this tutorial, you’ll learn how to set up the strategy’s parameters, test its performance through backtesting, fine-tune order spreads and risk controls, and finally save and deploy your configuration for live trading.

🔍 How PMM Simple Differs From Other Strategies

PMM Simple V2 is a foundational market making strategy implemented as a controller in Hummingbot V2. Its purpose is to continuously provide liquidity on both sides of the market and profit from capturing the bid-ask spread by placing symmetric buy and sell orders around the mid-price.

Unlike more complex strategies in the Hummingbot V2 codebase, PMM Simple does not use any technical indicators or price forecasts. It places limit orders at fixed spreads around a reference price (typically the mid-price), aiming to consistently earn from spread capture.

Strategies like pmm_dynamic adapt spread and pricing using MACD and volatility metrics (NATR), while bollinger_v1 and dman_v3 follow directional or mean-reversion logic with Bollinger Bands. PMM Simple stays always in the market, using clean, fixed parameters with minimal logic, making it ideal for stability, simplicity, and extensibility.

• Compared with v2 simple_pmm script

Both strategies place symmetric buy and sell orders around a reference price, but simple_pmm is a minimal script best for quick tests and basic setups. PMM Simple V2, as a controller, offers a more structured and maintainable design. Use pmm_simple if you plan to run your bot long-term, want better modularity, or intend to build on top of it in the future.

• Compared with v1 Pure Market-Making

V1 Pure Market Making is reliable and works well out-of-the-box, making it ideal for users who want a simple, ready-to-go strategy. However, its monolithic design makes it harder to modify if you want to add new features or customize behavior. PMM Simple V2, with its modular controller architecture, is much easier to extend and adapt—perfect for experimentation and long-term development.

🔧 Configuration Parameters

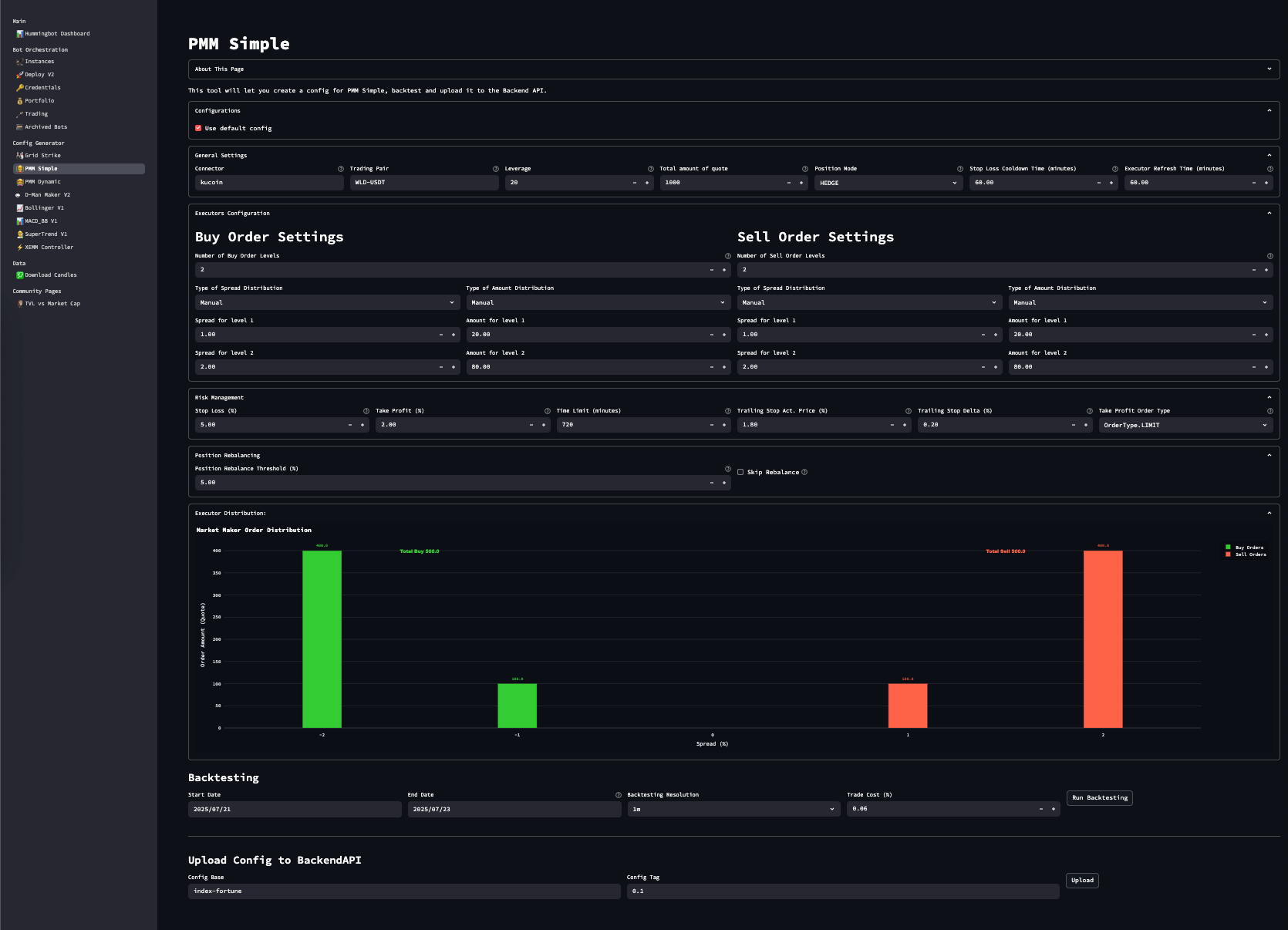

Navigate to PMM Simple from the sidebar in your Hummingbot Dashboard.

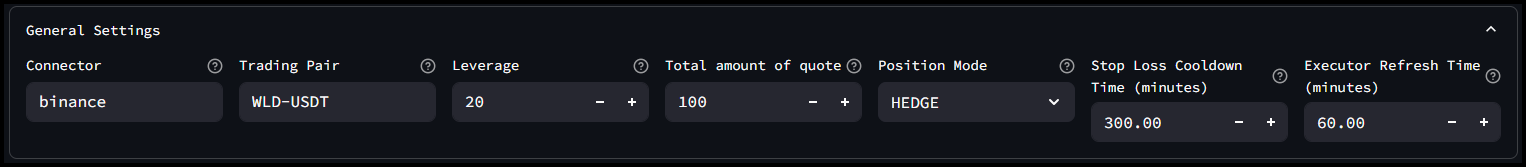

General Settings

Parameter	Description	Example
connector_name	Exchange name (e.g. binance, binance_perpetual)	binance
trading_pair	Market symbol	WLD-USDT
leverage	Leverage (set to 1 for spot)	20
total_amount_quote	Total amount to allocate in quote currency	100
position_mode	Derivatives only: HEDGE or ONEWAY	HEDGE
executor_refresh_time	Seconds before replacing inactive orders	300
cooldown_time	Wait time after stop-loss before re-entering	60

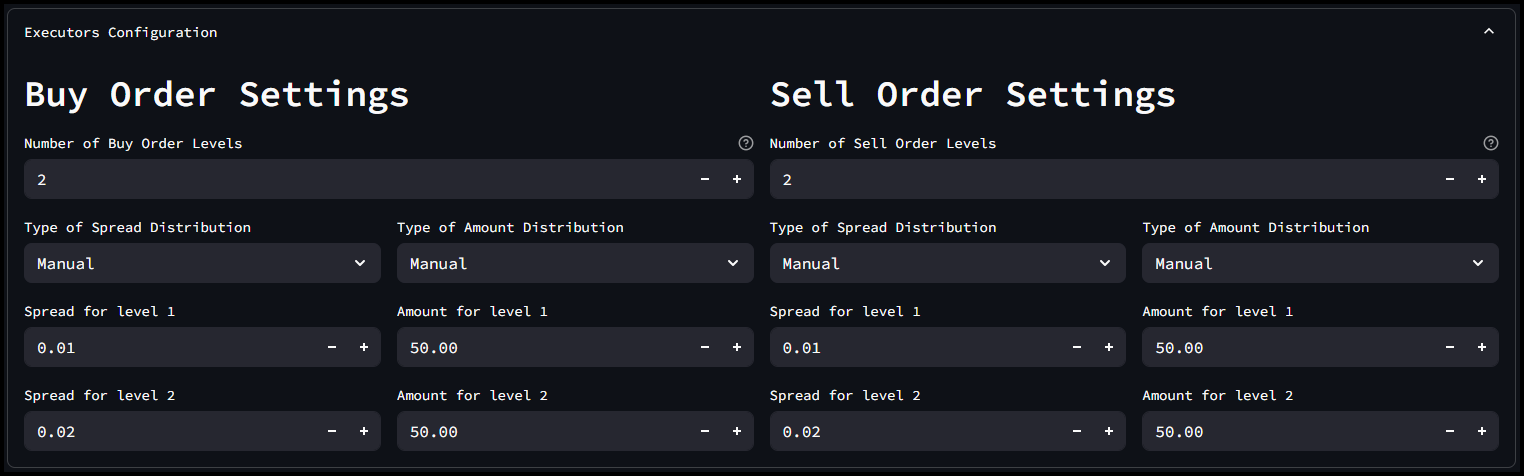

Buy/Sell Order Settings

Configure number of levels, spreads, and allocation per level:

Parameter	Description	Example
buy_spreads	% below mid-price for buy orders	[0.01, 0.02]
sell_spreads	% above mid-price for sell orders	[0.01, 0.02]
buy_amounts_pct	Relative sizes for buy orders	[50, 50]
sell_amounts_pct	Relative sizes for sell orders	[50, 50]

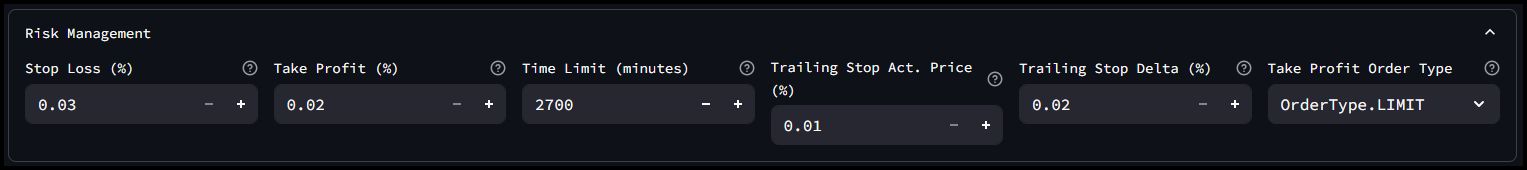

🛡️ Risk Controls

Parameter	Description	Example
stop_loss	Maximum allowed loss from entry (%)	0.03
take_profit	Profit target from entry (%)	0.02
time_limit	Max holding time before forced close (in seconds)	2700
take_profit_order_type	LIMIT or MARKET (or LIMIT_MAKER on some connectors)	LIMIT
trailing_stop	Activation delta and trailing delta (optional)	0.01, 0.002

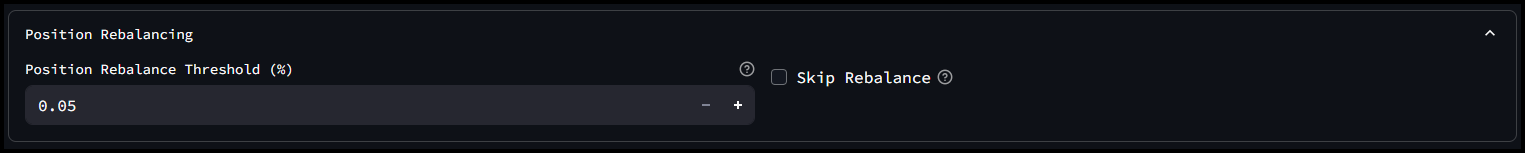

🔄 Position Management (Spot Only)

Parameter	Description	Example
position_rebalance_threshold_pct	Auto market order to rebalance if threshold exceeded	0.05
skip_rebalance	Disable automatic rebalance (true/false)	false

🧠 How the Strategy Works

The PMM Simple V2 strategy places a symmetric grid of limit orders around the mid-price using your configured spreads. For example, a spread of 0.002 is interpreted as 0.2%. The total quote balance is automatically distributed across these levels—either equally or according to your custom weightings (buy_amounts_pct, sell_amounts_pct).

Each filled order is handled by a PositionExecutor, which manages the exit using a triple-barrier system:

• Stop-loss: Protects against unfavorable price moves.

• Take-profit: Locks in gains once a target is hit.

• Time-limit: Closes stale positions after a defined period.

• (Optional) Trailing stop: Activates once a position is in profit and trails the price.

Behind the scenes, the controller monitors for stale or inactive orders and replaces them based on executor_refresh_time. If an order hits stop-loss, the strategy enforces a cooldown (cooldown_time) before placing it again.

🔁 How Rebalancing Works (Spot only)

If you're running the strategy on a spot connector and enable rebalancing, it will track your quote/base asset ratio. If the balance deviates beyond your position_rebalance_threshold_pct, the bot submits a market order to restore your original asset split. You can disable this behavior entirely by setting skip_rebalance: true.

📊 Backtesting Your Strategy

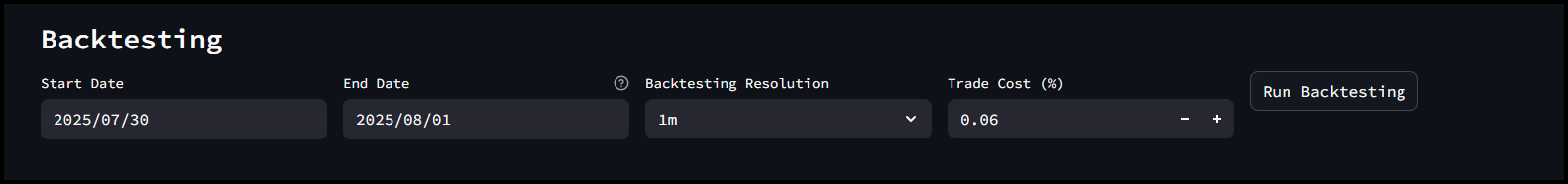

Use the Backtesting section to simulate strategy performance over historical data.

Steps:

1. Set your start and end date

2. Choose resolution (e.g. 1m, 5m)

3. Input expected trade cost %

4. Click Run Backtesting

Metrics Displayed:

Metric	Meaning
Net PnL	Total quote profit/loss
Max Drawdown	Largest single drop from peak
Total Volume	Total traded amount
Sharpe Ratio	Return vs risk metric
Profit Factor	Total gains / total losses
Executors	Number of executed positions
Accuracy	Overall success rate

💾 Saving Your Config

Once satisfied with backtest results:

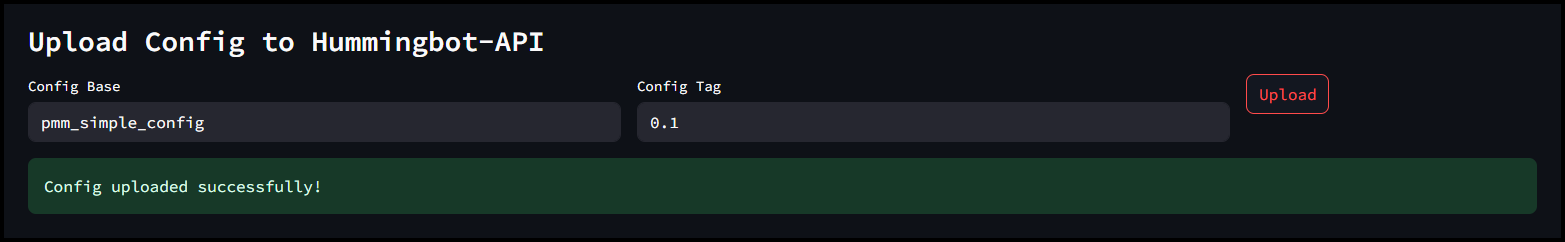

1. Scroll down to Upload Config to Hummingbot-API

2. Name your config base and add a config tag

3. Click Upload

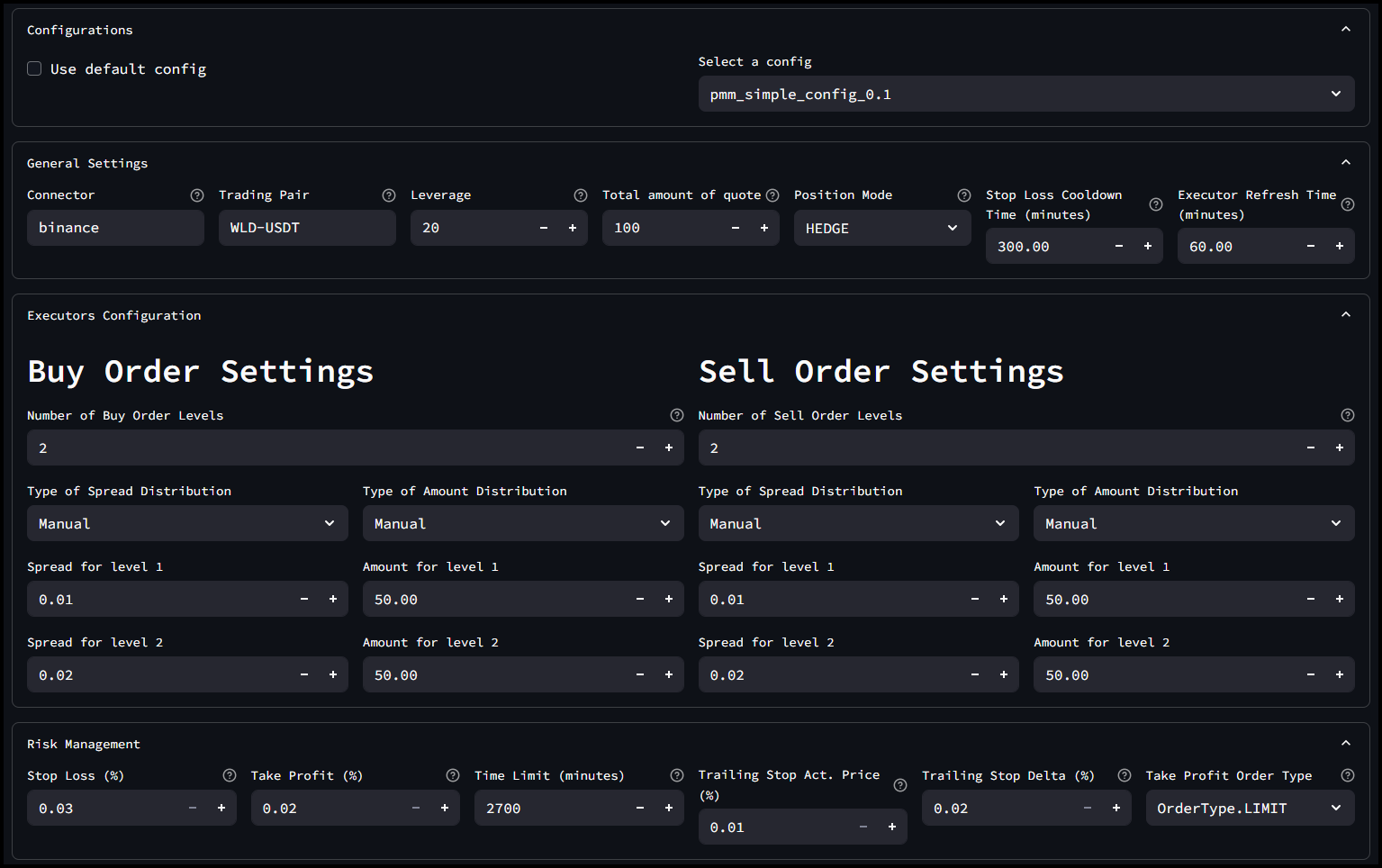

To reuse saved configs, uncheck “Use default config”

➡️ Dropdown will show saved configs

➡️ Loading one auto-fills all fields.

Saved YAML files are stored under:

/bots/conf/controllers/

➡️ You can also tweak an existing config, then save it under a new name for versioning.

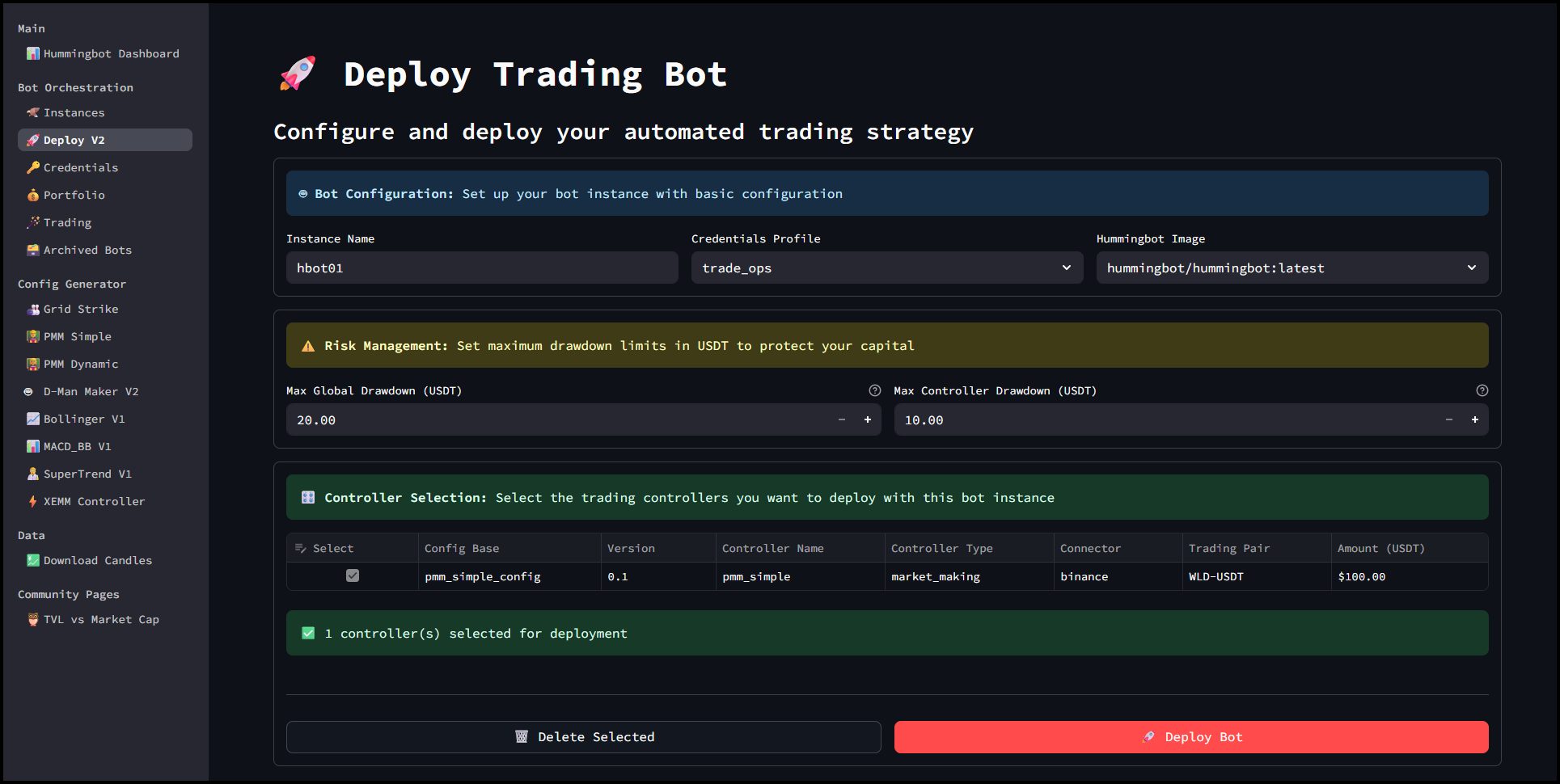

🚀 Deploying Your Config

To launch your trading bot using the saved configuration:

1. Enter an Instance Name

2. Select your Credentials Profile

3. Choose the appropriate Hummingbot Image

4. Configure Risk Limits – global and per controller

5. Select the saved Controller Config

6. Click Deploy Bot

🎉 Congratulations! You've just deployed a pmm_simple trading bot.

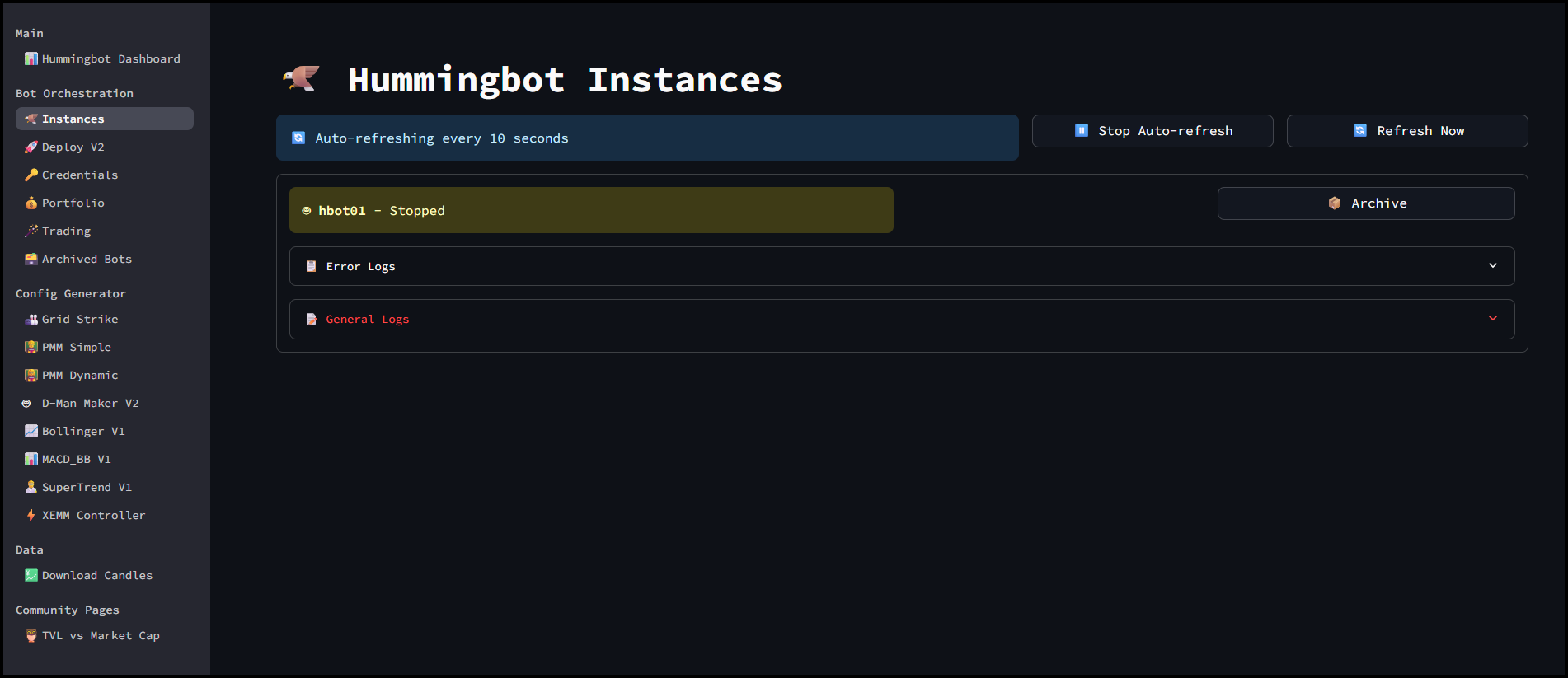

To monitor your bot, go to the Instances page —
Status may take a few seconds to reflect after deployment.

✅ Summary

PMM Simple V2 is a well-structured, clean market making strategy with customizable order levels, robust risk control, and integrated backtesting. It's a great tool for those looking to:

• Capture consistent spread-based profits

• Start with simple logic

• Build on a modular controller-based system for long-term improvements
